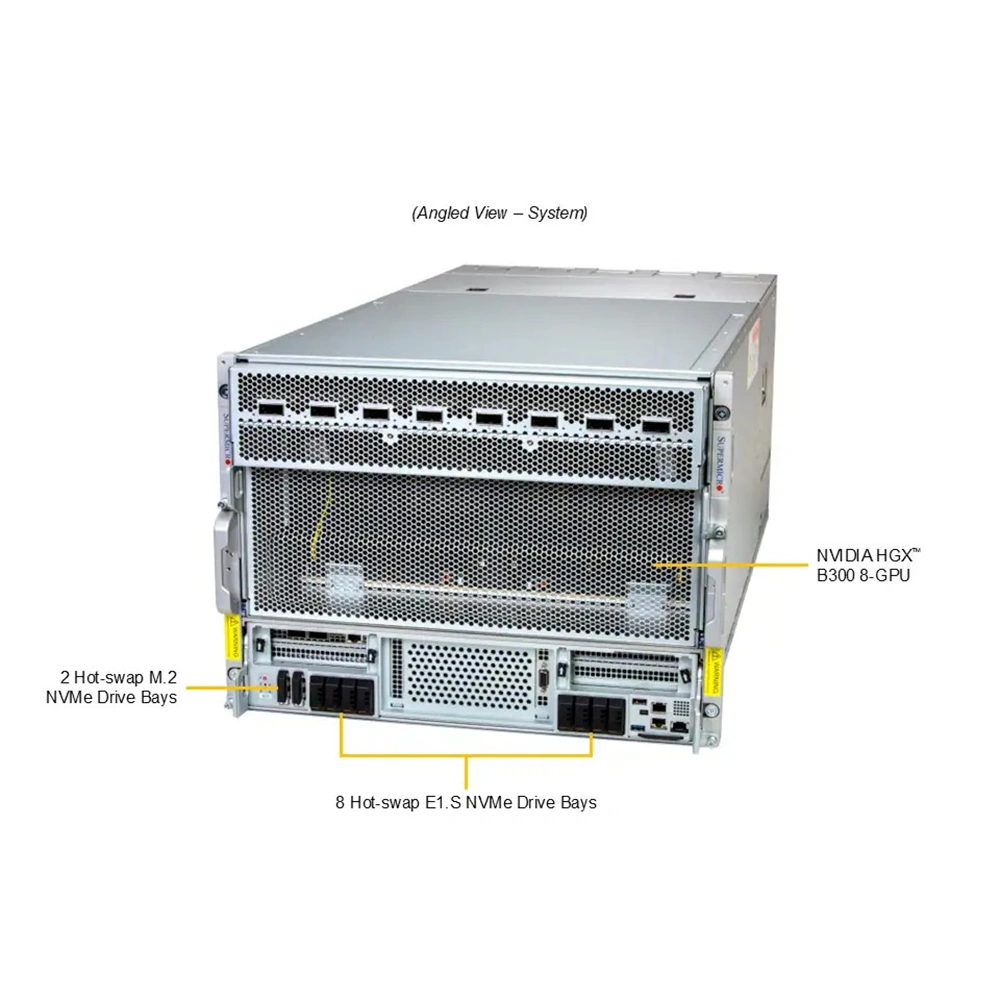

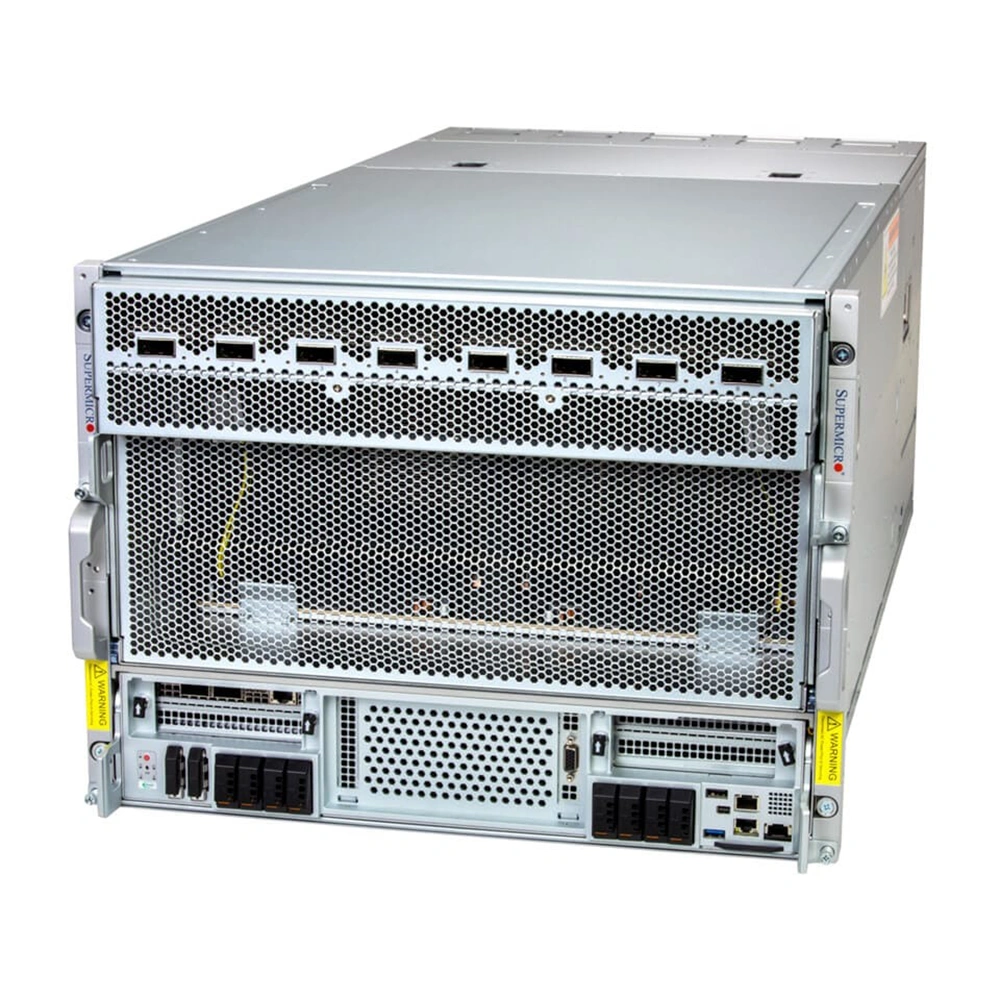

GPU A+ Server AS -8126GS-NB3RT

DP AMD 8U GPU System with NVIDIA HGX B300 NVL8

ราคา 340,000 บาท

*ราคายังไม่รวมภาษีมูลค่าเพิ่ม

รายละเอียดสินค้า

Model

Model
GPU A+ Server AS -8126GS-NB3RT

Specification

Product SKUs
A+ Server AS -8126GS-NB3RT
Motherboard

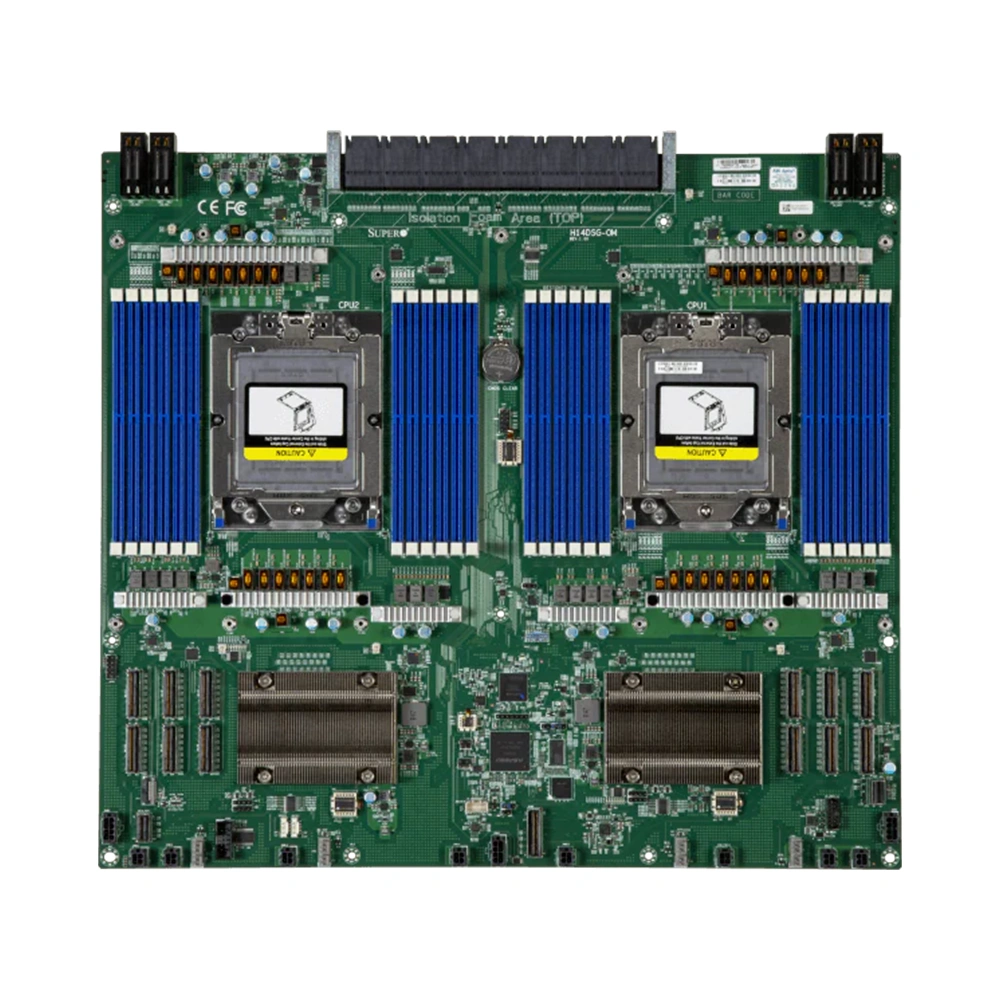

Super H14DSG-OM
Processor
  • CPU : Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
  • Core Count : Up to 384C/768T
  • Note : Supports up to 500W TDP CPUs
GPU
  • Max GPU Count : 8 onboard GPUs
  • Supported GPU : NVIDIA SXM: HGX B300 8-GPU (288GB)
  • GPU-GPU Interconnect : NVIDIA® NVLink® with NVSwitch™

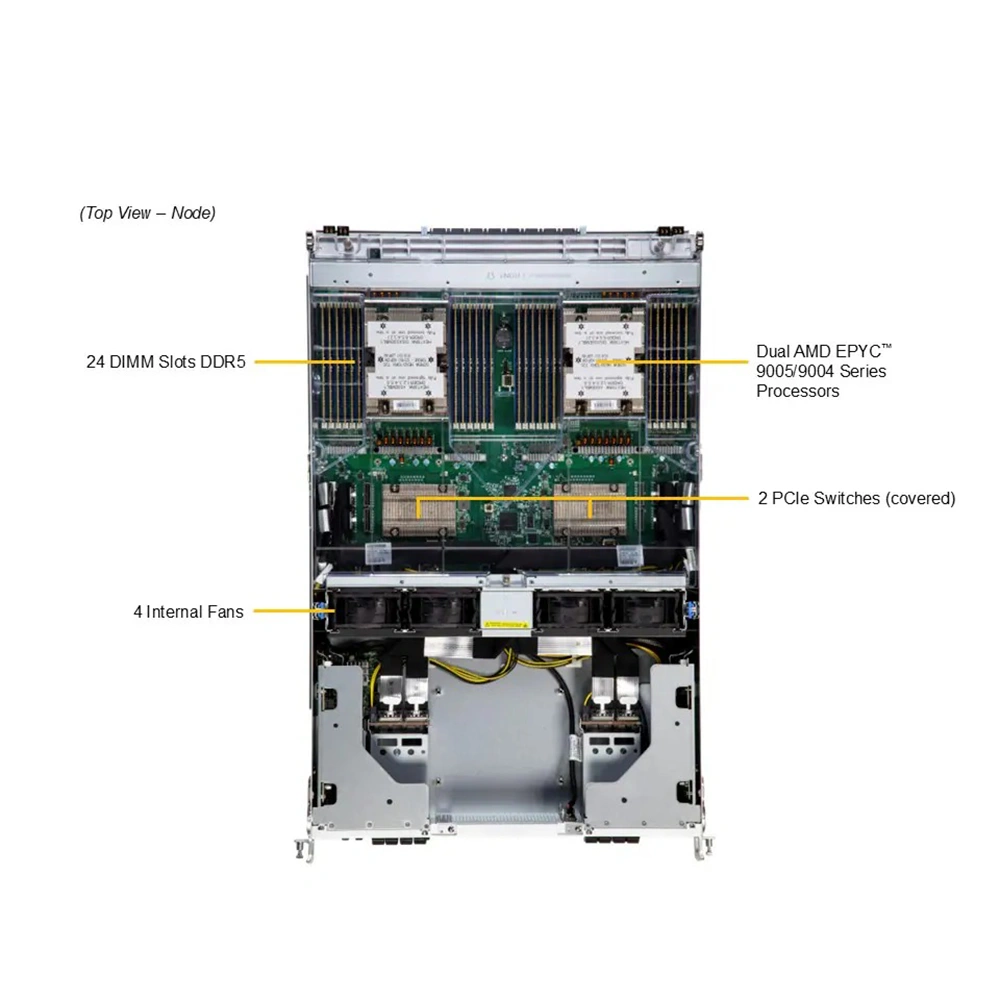

System Memory
  • Memory : Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • Memory Voltage : 1.1V
On-Board Devices
  • Chipset : System on Chip
  • Network Connectivity : 8 OSFP 800GbE
Input / Output
  • USB : 1 USB 3.0 Type-A port(Front) 1 USB 2.0 Type-A port(Front)
  • Video : 1 VGA port 1 mini-DP port
System BIOS
AMI 64MB UEFI
Management
  • Software : SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
  • Power configurations : Power-on mode for AC power recovery ACPI Power Management
Security
  • Hardware : Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features : Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
  • CPU : Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
  • FAN : Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
  • Temperature : Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
  • Form Factor : 8U Rackmount
  • Model : CSE-GP807TS-R000NP
Dimensions and Weight
  • Height : 13.8″ (356 mm)
  • Width : 17.6″ (449 mm)
  • Depth : 37.4″ (950 mm)
  • Package : 27.6″ (H) x 51″ (W) x 29.5″ (D)
  • Weight : Gross Weight: 266.76 lbs (121 kg) Net Weight: 108 lbs (49.4 kg)
  • Available Color : Silver
Front Panel
  • LED : HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID)
  • Buttons : Power On/Off UID
Expansion Slots
  • PCI-Express (PCIe) : Default 2 PCIe 5.0 x16 FHHL slots
Drive Bays / Storage
  • Drive Bays Configuration : Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays
  • M.2 : 2 M.2 NVMe slots (M-key)
System Cooling

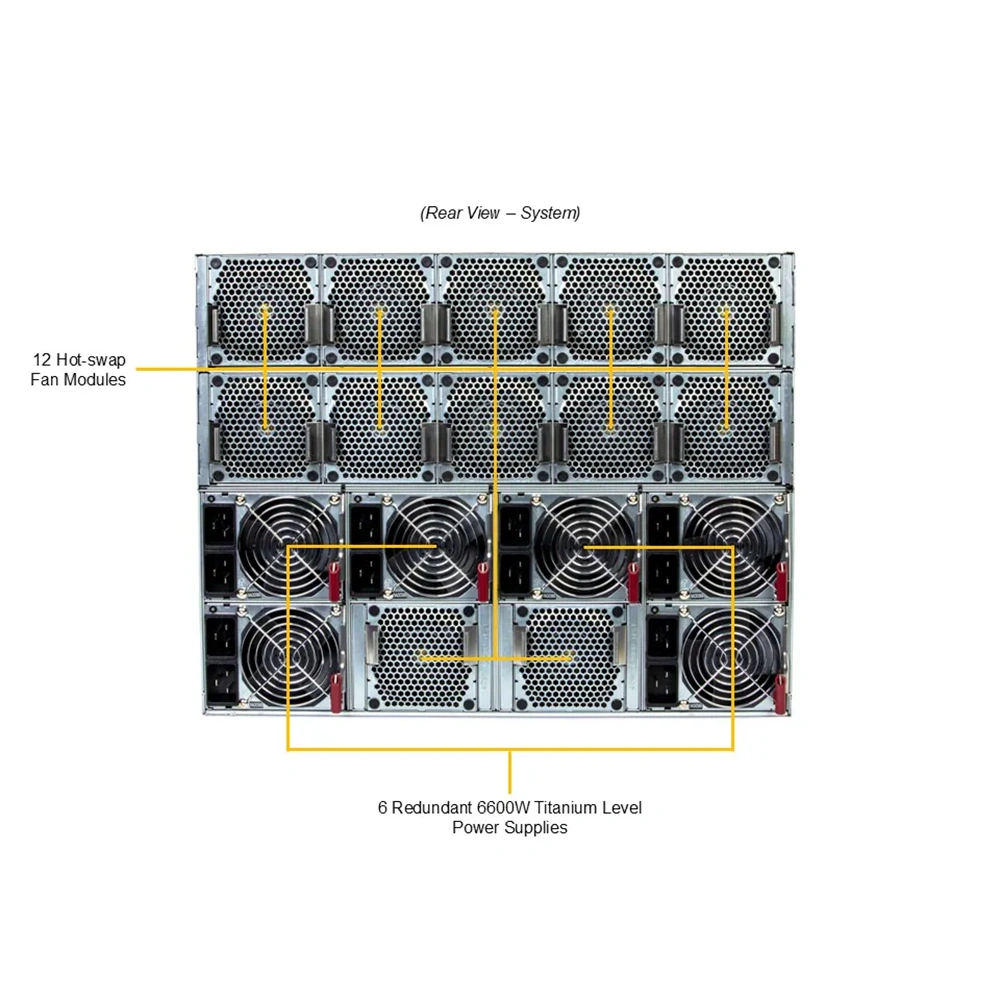

  • Fans : Up to 12 heavy duty fans with optimal fan speed control
Power Supply
  • 6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
  • Dimension (WxHxL) : 106.5 x 82.1 x 245.3 mm
  • Input : 5900W: 200-207.9Vac / 50-60Hz
  • 6000W: 208-219.9Vac / 50-60Hz
  • 6300W: 220-229.9Vac / 50-60Hz
  • 6500W: 230-238.9Vac / 50-60Hz
  • 6600W: 239-240Vac / 50-60Hz
  • +12V : Max: 130A / Min: 0A (200Vac-207.9Vac)
  • Max: 130A / Min: 0A (208Vac-219.9Vac)
  • Max: 130A / Min: 0A (220Vac-229.9Vac)
  • Max: 130A / Min: 0A (230Vac-238.9Vac)
  • Max: 130A / Min: 0A (239Vac-240Vac)
  • 12V SB Max : 4A / Min: 0A
  • Output Type : Backplanes (gold finger)
  • Certification : Titanium Level
Operating Environment
  • Environmental Spec. : Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Warranty

การรับประกัน
1 ปี

ขอใบเสนอราคา

ติดต่อฝ่ายขาย

รับคำปรึกษาฟรี! พูดคุยกับฝ่ายขายของเรา
ผ่านไลน์ได้ตลอดเวลาทำการ 09:30 – 18:30 น.

ลูกค้าปัจจุบันที่ต้องการปรับเปลี่ยนแพ็กเกจ
กรุณาติดต่อผ่านระบบ Ticket

*Disclaimer:

  • Third-party logos and marks are registered trademarks of their respective owners. All rights reserved.
  • Prices may be changed at any time without further notice.
